PLAR feature is designed so, as soon as the phone goes off-hook on a specific line it dials a pre-configured number. Typically, this feature is used in hotel lobbies.
Requirements
- Cisco Unified Communications Manager (CUCM) version 11 or later
- Cisco Unified Communications Manager Admin Access
- Calling Search Space (CSS)
- Partition (PT)
- Translation Patterns
- Session Initiation Protocol (SIP) Dial Rules
- Cisco IP Phone 7800, 7900, 8800 series
Difficulty Level - Easy
Procedures
- Create Partition for the PLAR destination. Navigate to Call Routing > Class of Control > Partition.

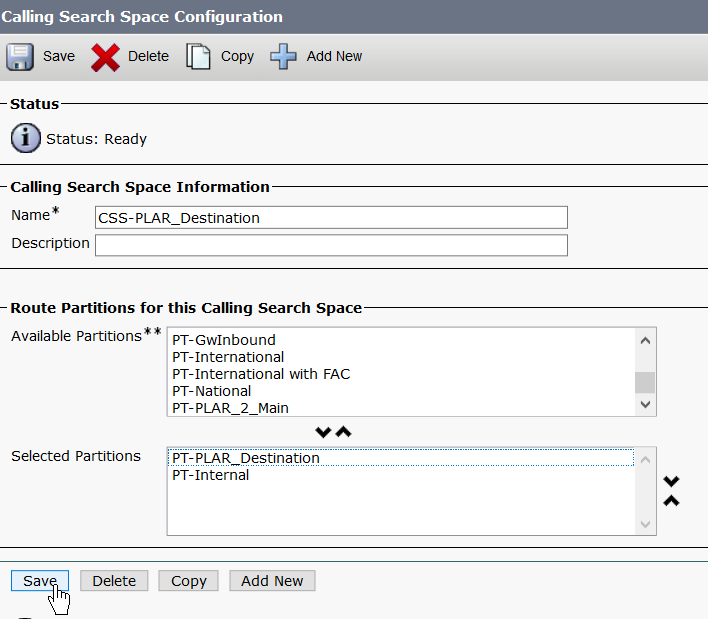

- Create a new CSS. Navigate to Call Routing > Class of Control > Calling Search Space
- Add the Partition and PT-Internal on to the new CSS
4. Create a new Translation Pattern. Navigate to Call Routing > Translation Pattern
5. Make sure that the Translation Pattern field is left Blank as above.
Enter the PLAR target number on Called Party Transform Mask.

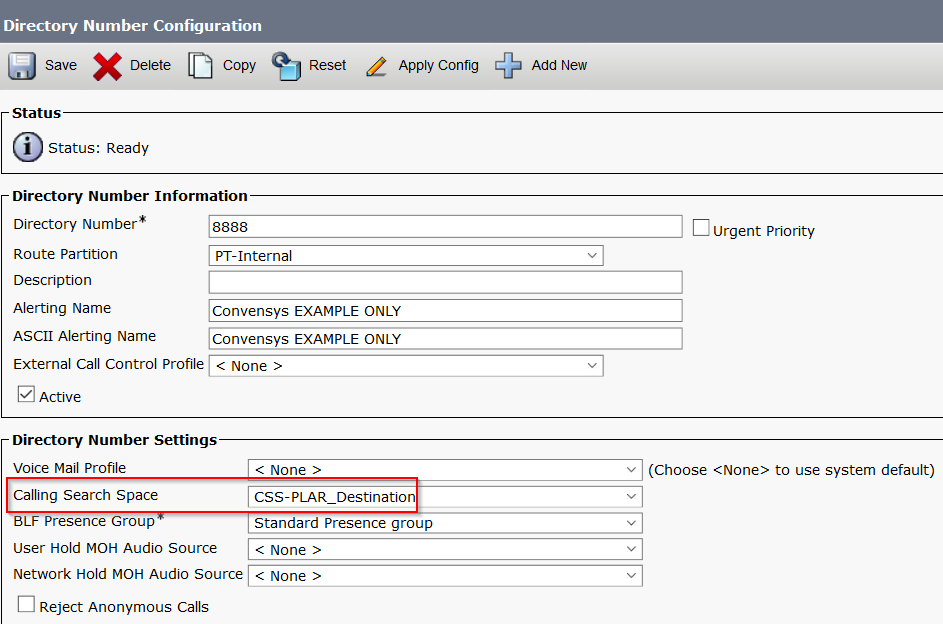

6. Navigate to Call Routing > Directory Number > Select the PLAR phone
7. Assign the new CSS as below then Save

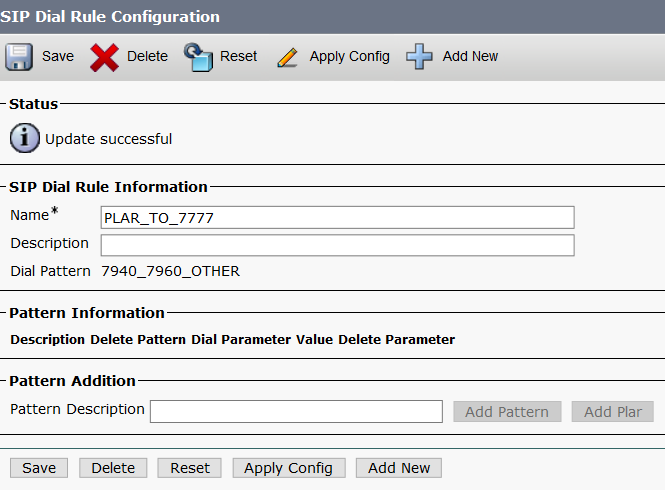

8. Navigate to Call Routing > Dial Rules > SIP Dial Rules > Add new > Save

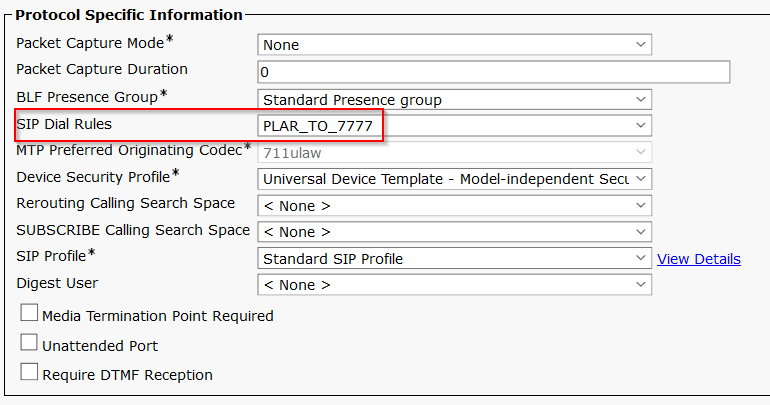

9. Navigate to Device > Find the device > Scroll down to the Protocol Specific Information > Apply SIP Dial Rule
10. Make sure hit Save button and Apply Config button.
Verification
- In order to verify that the configuration was performed correctly take the phone off hook. In this case, the phone automatically dials the number 7777.
Please let us know if you have any problems on these steps or any questions.
